Balsa Usa 1/6 Scale Fokker Dr1 Triplane1187mm WS Fa-62 4C 2.8Kg 4Ch
Description

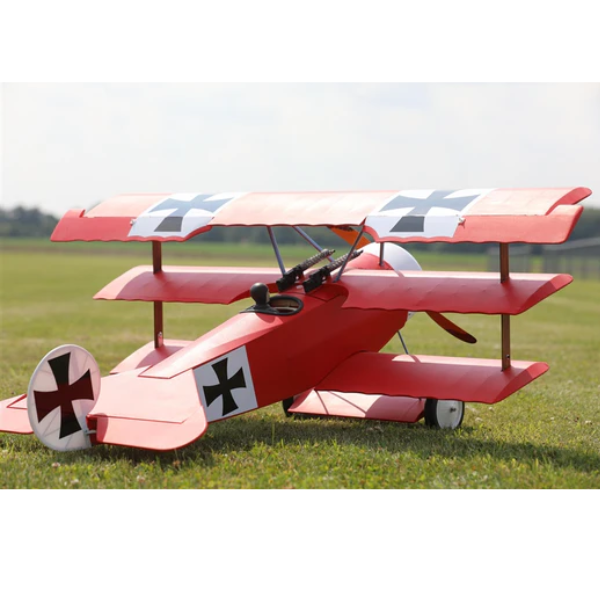

1/6 Scale Fokker DR.1 Triplane
The most iconic aircraft of the First World War, the Fokker Dr-1 Triplane blazed its way across the skies of France and into the popular culture of Today! And while Manfred Von Richthofen, aka the "Red Baron" rode his Fokker Triplane to his death over one hundred years ago. That "Ace of Aces" and his all red Fokker Triplane are still flying high in the name of Air Show Teams, Popular Songs, and even Pizza Company's that honor the timeless memory of The Red Baron, and his all red Triplane!
Type: German WW-I fighter
Wing Span : 46-3/4 Inches (7” cord)
Wing Area: 841 Square Inches total.
Airfoil: Flat Bottom
Wing Loading: 16-3/4 Oz. / Sq. Foot
Fuselage Length: 38-1/2 Inches.
Flying Weight: 5-3/4 to 6-1/2 Pounds.
Engine Size: .40 ~ .45 2-Stroke / 45 4-stroke recommended
Prop Size: Depends on engine being used
Fuel Tank: 4 ~ 6 Oz.
Radio Equipment: 4-Channel W/ 5 servos
Servo Requirements: Mini servos recommend (2 servos required for ailerons)
Wheel Size: 4-3/8” vintage (Not included in kit)
Cowl Diameter: 6-3/8” Diameter, 3-1/4 Deep
Scale Prop Size: 16-3/4" Dia.
Batteries: 4 Cell 2,250 mAh
Model Features
- Balsa, Bass, and Ply construction
- Top and Middle Wings Removable as “1-piece”
- Bottom Wing bolt on separately
Kit Includes
- Full-Size plans W/ Photo instruction book.
- Laser Cut parts
- Pre-bent wire landing
- Basic hardware package
- ABS plastic cowl.
Items Needed to Complete
- Control system, push rod type.
- Fuel System (fuel tank & fuel lines), Batteries, ESC, and Motor
- (2) 5-meter rolls of covering material (Oratex recommended)
- 1-pair 4-3/8” Vintage wheels
Notes
Center of Gravity 2 Inches back from leading edge of top wing
