Radiolink 12 Ch RC Car Aircraft BoatR12Ds Rx
RLAT10II
Stock Level:
Low Stock
Description

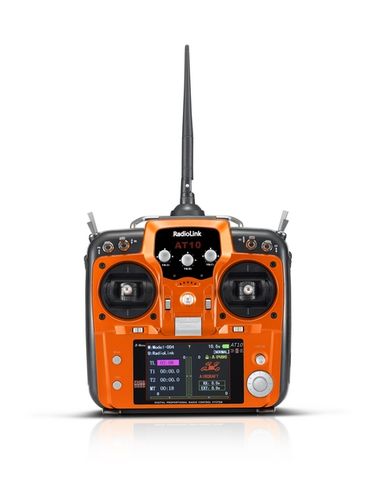

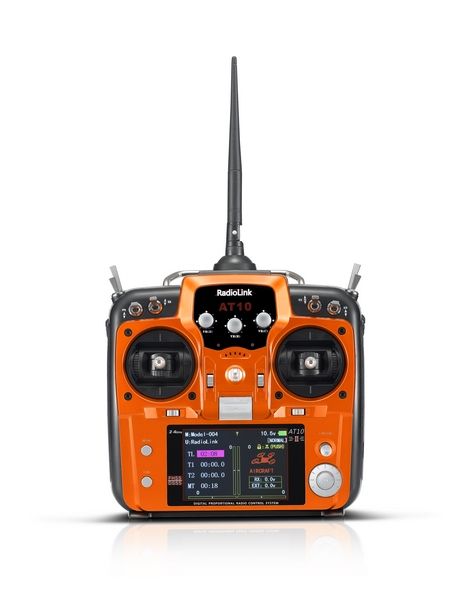

Radiolink AT10II 2.4G 12CH Transmitter w/ R12DS Receiver
Radiolink AT10II 2.4G 12CH Transmitter is the upgraded version of the Radiolink AT10 radio. It comes with 7DBI high-gain transmitter antenna, dual antenna receiver R12DS, the control distance is up to 4km. It takes 3ms for 12 channels response synchronously, has better anti-interference, and is more stable and faster than previous version.
Features
- Real-time data telemetry
- Sbus, ppm and pwm support
- Anti-polarity connect protection intelligent
- Programmable mix control
- USB upgrade
- Multitype alarm
Specifications
- Size: AT10II-180*95*220mm, R12DS-50*32*15mm
- Weight; 0.95kg
- Frequency: 2.4GHz ISM band (2400MHz to 2483.5MHz)
- Modulation mode; QPSK
- Channel bandwidth; 5.0 MHz
- Spread spectrum: DSSS&FHSS
- Adjacent channel rejection: >38dbm
- Transmitter power; <100mW (20dbm )
- Operating current; <105mA
- Operating voltage: 7.4-15.0V
- Control distance: up to 4km, the actual control distance depends on the flying environment
- Channel; 12 channels, 5-12 channels are customized
- Compatible model: all 120 degree and 90 degree swash-plate helicopter, all fix wings, glider and multirotor
- Simulator mode: under the simulator mode the transmitter action turns off, changes to power saving mode
- Screen: 3.5 inches 16 colorful screen, 320*480 pixels
- Support receivers: sells with R12DS (SBUS&PWM), compatible with R6DS,R6DSM,R9DS,R12DS
- Dsss and fhss spread spectrum
- More stabilized, faster
- Low consumption of battery
R12DS Receiver Sepcifications
- Dimensions: 50 * 32 * 14.5mm
- Weight: 14g
- Channels: 11 channels for PWM signal output, 12 channels for SBUS&PWM signal output
- Signals: PWM/SBUS/PWM
- Operating Voltage: 3-10V
- Operating Current: 38-45A @ 5V
- Section Precision: 4096, 0.25us per section
- Control Distance: 4000meters in the air, the max range tested in unobscured areas free of interference and may vary depending on local conditions
