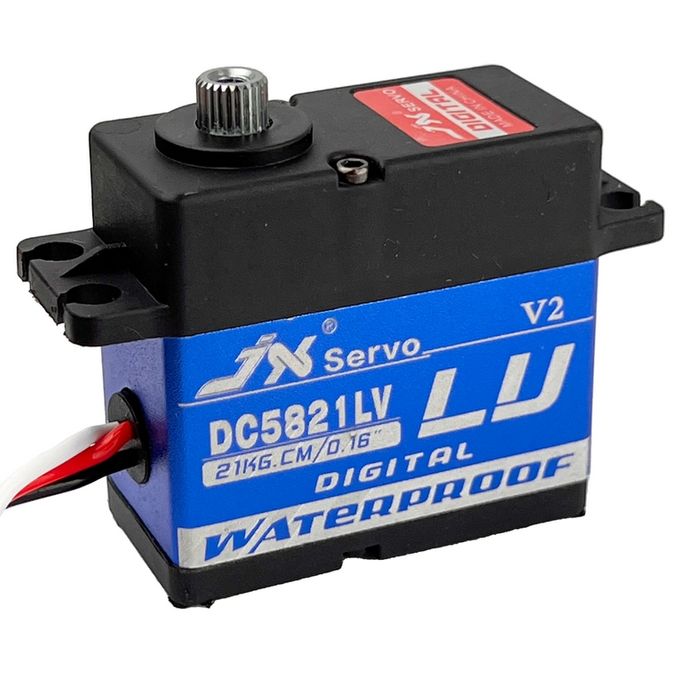

JX Servo 21.8Kg .16 sec 6V Waterproof 2BB 58g 40.5x20.2x38 mm Hi Torq
JX5821
Stock Level:
In Stock
Description
DC5821LV 20KG Full waterproof digital high quality servo
| FEATUREï¼ |
| -----CNC metal On the cover In the shell |
| -----High-precision Taiwan-made aluminium gears with hard anodizing |
| SPECIFICATIONSï¼ | |
| Dead bandï¼ | 2μs |
| Working frequenceï¼ | 1520μs / 330hz |
| Motorï¼ | Core |
| Operating Speed4.8v | 0.18 sec/60° |
| Operating Speed6.0v | 0.16 sec/60° |
| Stall Torque 4.8v | 16.5 kg.cm |
| Stall Torque 6.0v | 21.8 kg.cm |
| Dimensionsï¼ | 40.5X20.2X38mm |
| Weightï¼ | 58 g |
| Wire/Colorï¼ | JR 265 mm/ -Brown +Red S Orange |
| Bearingï¼ | 2BB |
