JX Servo 6.21Kg .12 sec 6V 48.5g 40.5x20.2x38 mm Std
JX4806
Stock Level:
Out of Stock
Description

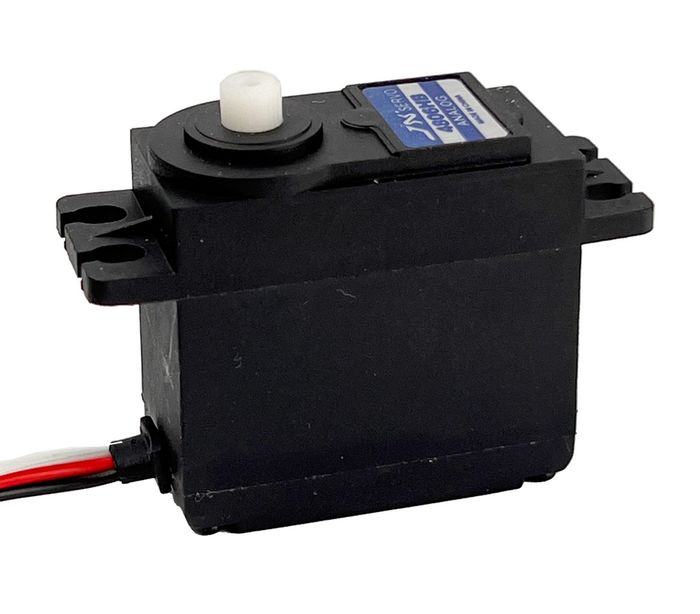

PS-4806HB 6KG Plastic Gear Analog Standard Servo
SPECIFICATIONS:
Dead band:7μs
Working frequence: 1520μs / 50hz
Operating Speed (4.8V): 0.14sec/60°
Operating Speed (6V): 0.12 sec/60°
Stall Torque (4.8V): 5.56kg.cm (72.23oz/in)
Stall Torque (6V): 6.21 kg-cm (86.26 oz/in)
Dimensions: 40.5X20.3X38mm /1.59X0.80X1.49 in
Weight: 48.5 g (1.71oz)
Connector Wire Length: JR 265 mm (10.43in)
