JX Servo 4.52Kg .16 sec 6V 25.7g MG 2BB35.5x15x30 mm Mini
JX2504
Stock Level:
In Stock
Description

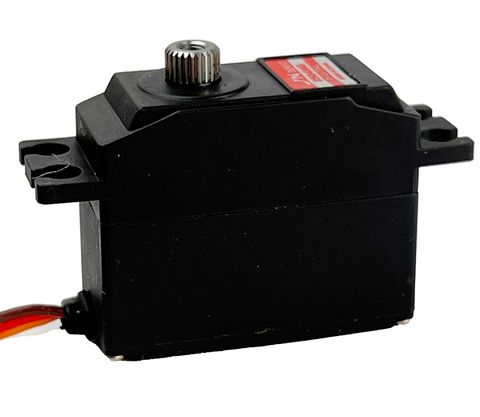

PDI-2504MG 25g Metal Gear Micro Digital Servo
Dead band: 2μs
Working frequence: 1520μs / 330hz
Operating Speed (4.8V): 0.12sec/60°
Operating Speed (6V): 0.10 sec/60°
Stall Torque (4.8V): 3.35 kg.cm (46.52 oz/in)
Stall Torque (6V): 4.52kg.cm (62.7oz/in)
Dimensions: 36 x 15 x 32.4 mm
Weight: 25.65 g (0.90oz)
Connector Wire Length: JR 180 mm (7.09in)
Bearing: 2BB
Usage:for RC Models
Features:
High quality servo for RC Models
High precision metal gear
Mini size digital servo
Dual ball bearing
