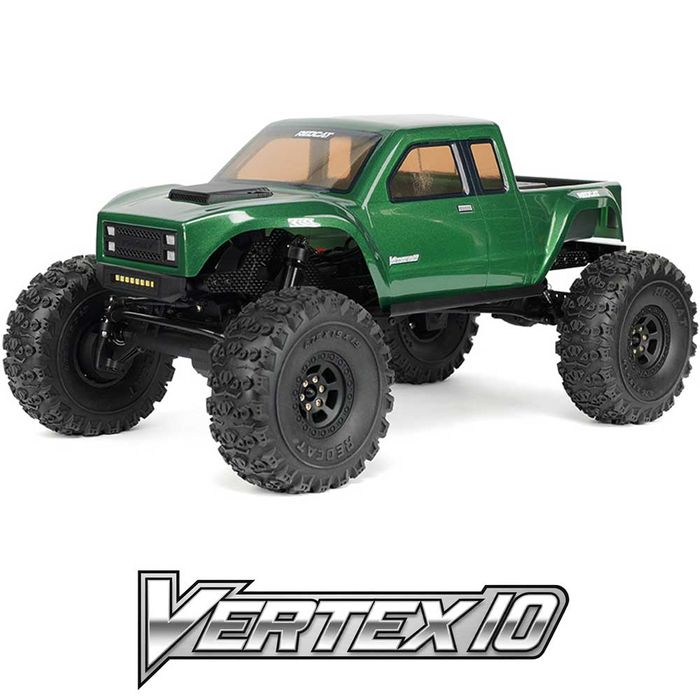

Redcat 1:10 VERTEX 10 CRAWLER METALLIC GREEN

Description

Redcat Vertex-10

1:10 Scale Brushless Electric Rock Crawler

Vertex-10 - 1/10 Brushless Electric RC Scale Rock Crawler

Includes: 2.4GHz Radio, Ready to Run

Note: Battery and Charger Not Included

The Vertex 10 platform represents Redcat’s next evolution in precision crawling performance.

Engineered from the ground up around a lightweight 3mm carbon-fiber chassis, high-clearance geometry, and a 4-link suspension system with SOA (servo-on-axle), the Vertex 10 family delivers the perfect balance of strength, responsiveness, and control. Every component, from the Hobbywing brushless outrunner to the Hexfly 50kg brushless servo, is selected to give drivers smooth low-speed finesse, powerful climbing authority, and reliable performance on any terrain.

Both Vertex 10 models share the same core DNA: air emulsion-style shocks with aluminum bodies, machined ring and pinion gears, steel front axle tubes, aluminum rear tubes, and a drivetrain tuned for aggressive front-end pull. With double CV front shafts, a 58-degree steering angle, and a rigid carbon backbone, the platform is built to handle technical crawling, steep ascents, and unpredictable rock surfaces with confidence.

Where the Vertex 10 platform becomes truly versatile is in its two distinct configurations:

• Vertex 10: Designed for precision, agility, and tight-line mastery—the crawler you choose when the terrain gets tight and technical.

• Vertex 10 Wide: Expands the platform with a broader stance, longer wheelbase, and 2.2" wheels and tires, delivering unmatched stability on steep, loose, or high-risk terrain.

Together, they form a complete crawling ecosystem: one built for finesse, the other for boldness—both unmistakably Redcat.

Specifications

• Vehicle Scale: 1/10

• Motor: Hobbywing 2812 1700KV Brushless Outrunner Motor

• Transmission: Forward & Reverse

• Drive System: 4-Wheel Drive (4WD)

• Length: 445mm

• Width: 254mm

• Height: 207mm

• Servo Type: HX-50BL 50kg @ 8.4V (0.09 sec speed)

• Wheelbase: 316mm

• Ground Clearance: 64mm @ Skid Plate

• Chassis Type: 3mm Carbon Fiber Chassis

• Wheel Width: 1.2"

• Wheel Diameter: 1.9"

• Suspension: Aluminum Body Oil-Filled Air Emulsion Shocks

• Speed Control (ESC): 60A Programmable Brushless ESC with Integrated Fan (2S-4S Ready, 6V/8.4V 10A BEC)

• Radio System: RTX-4C 4-Channel Radio System (Adjustable EPA on all channels)

• Battery: Not Included

Needed to Run

• 4× AA Batteries for Transmitter

• 2S–4S LiPo Battery

• LiPo Battery Charger
