Redcat 1:10 VERTEX 10W ELECTRIC GREEN
Description

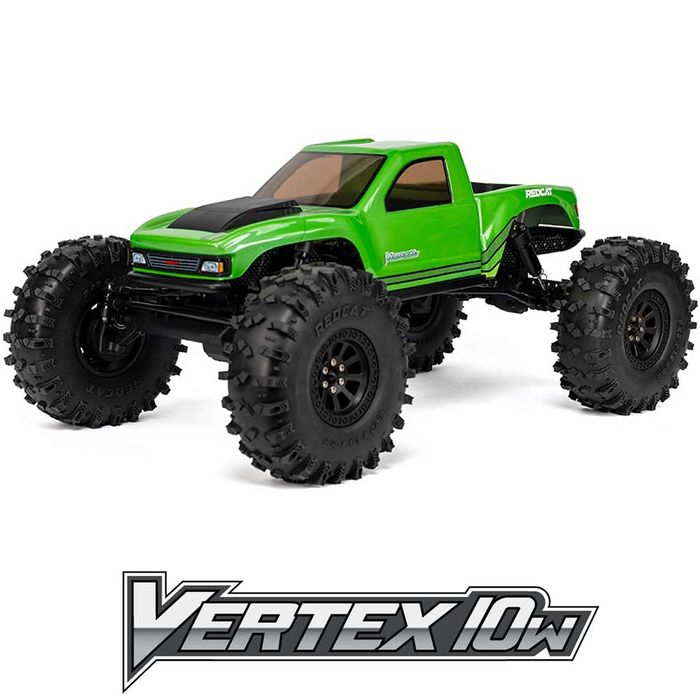

Redcat Vertex-10W
1:10 Scale Brushless Electric Rock Crawler
Vertex-10W - 1/10 Brushless Electric RC Scale Rock Crawler- Includes: 2.4Ghz Radio, Ready to Run, Battery and Charger Not Included
The Vertex 10 platform represents Redcat’s next evolution in precision crawling performance.
Engineered from the ground up around a lightweight 3mm carbonâfiber chassis, highâclearance geometry, and a 4-link suspension system with SOA (servo-on-axle), the Vertex 10 family delivers the perfect balance of strength, responsiveness, and control. Every component from the Hobbywing brushless outrunner to the Hexfly 50kg brushless servo is selected to give drivers smooth lowâspeed finesse, powerful climbing authority, and reliable performance on any terrain.
Both Vertex 10 models share the same core DNA: air emulsion-style shocks with aluminum bodies, machined ring and pinion gears, steel front axle tubes, aluminum rear tubes, and a drivetrain tuned for aggressive frontâend pull. With doubleâCV front shafts, a 58âdegree steering angle, and a rigid carbon backbone, the platform is built to handle technical crawling, steep ascents, and unpredictable rock surfaces with confidence.
Where the Vertex 10 platform becomes truly versatile is in its two distinct configurations.
The Vertex 10 is designed for precision, agility, and tightâline mastery, the crawler you choose when the terrain gets tight and technical. The Vertex 10 Wide expands the platform with a broader stance, longer wheelbase, and 2.2" wheels and tires, delivering unmatched ability on steep, loose, or highârisk terrain.
Together, they form a complete crawling ecosystem: one built for finesse, the other for boldness, both unmistakably Redcat.
- Vehicle Scale : 1/10
- Engine / Motor : Hobbywing 2812 1700KV Brushless Outrunner Motor
- Transmission : Forward & Reverse
- Drive System : 4 Wheel Drive
- Length : 463mm
- Width : 278mm
- Height : 206mm
- Servo Type : HX-50BL 50KG @ 8.4V .09 Speed
- Wheelbase : 330mm
- Ground Clearance :74mm
- Chassis Type : 3mm Carbon Fiber Chassis
- Wheel Width : 1.4"
- Wheel Diameter : 2.2"
- Suspension : Aluminum Body Oil Filled Air Emulsion Shocks
- Speed Control Type : 60a Programmable Brushless ESC With Integrated Fan, 2-4S Ready, 6/8.4V, 10a BEC
- Radio System : RTX-4C - 4 Channel Radio System, Adjustable EPA OnAll Channels
- Battery : Not Included
- Needed to Run : 4-AA Batteries for Transmitter - 2S-4S LIPO - Battery Charger
